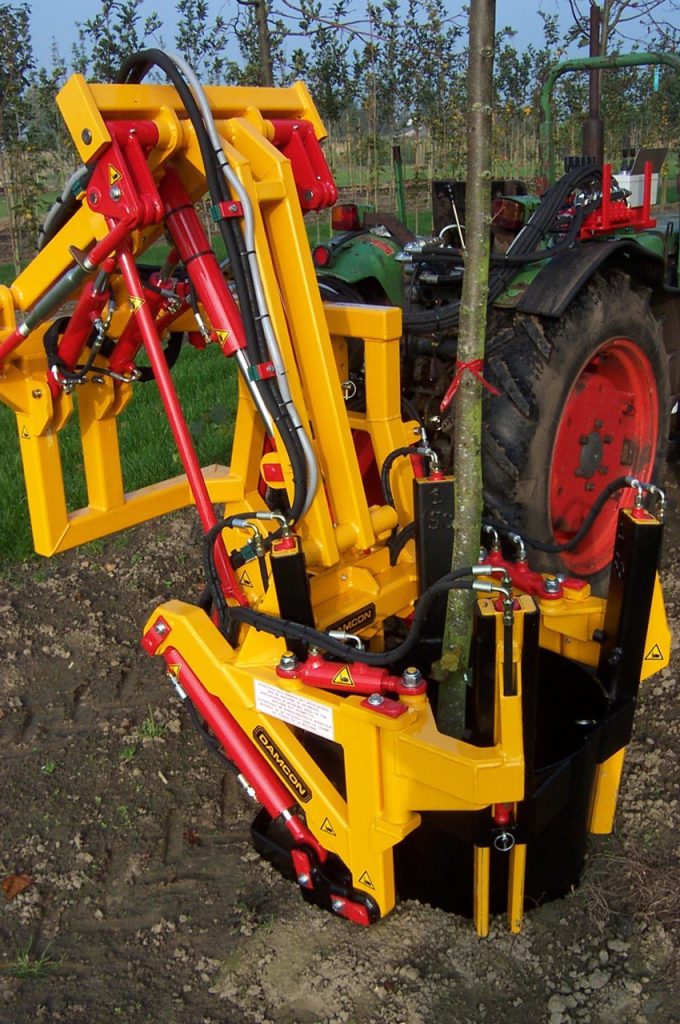

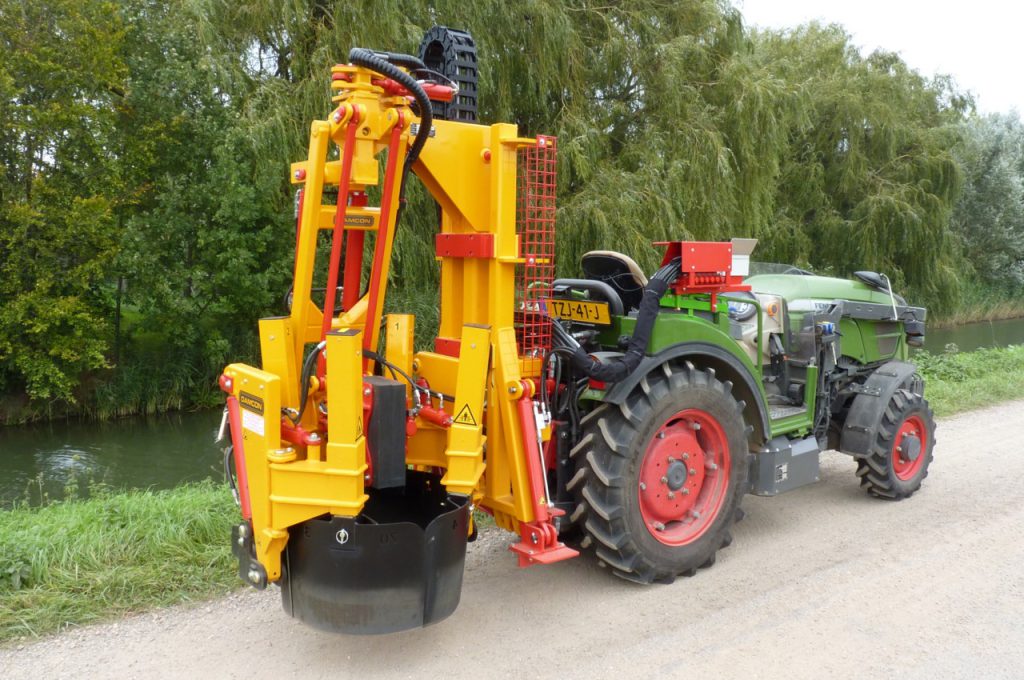

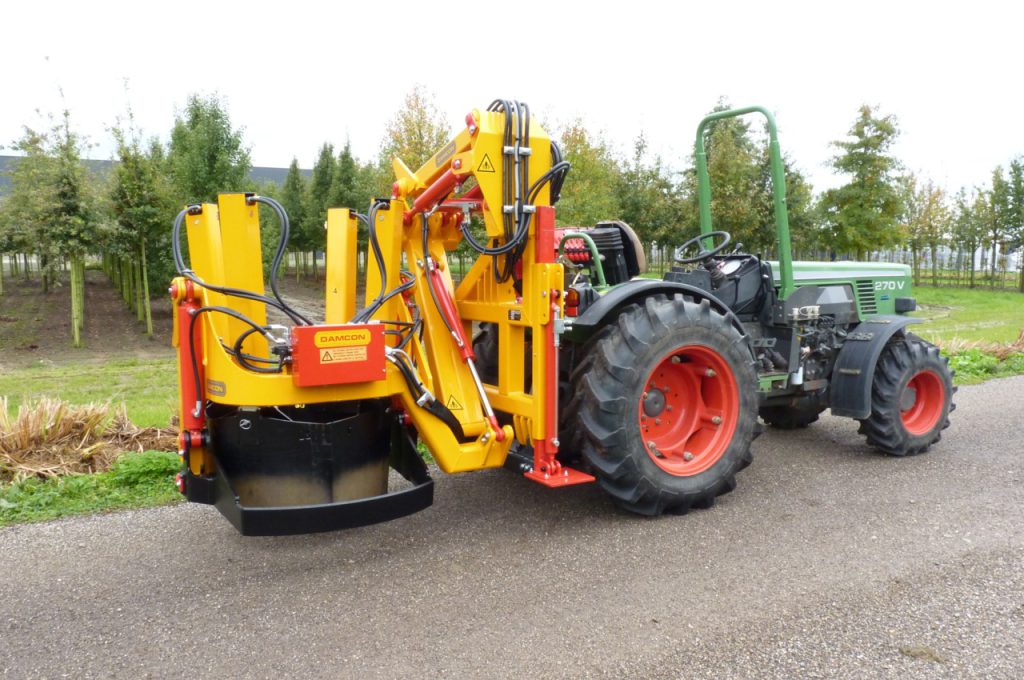

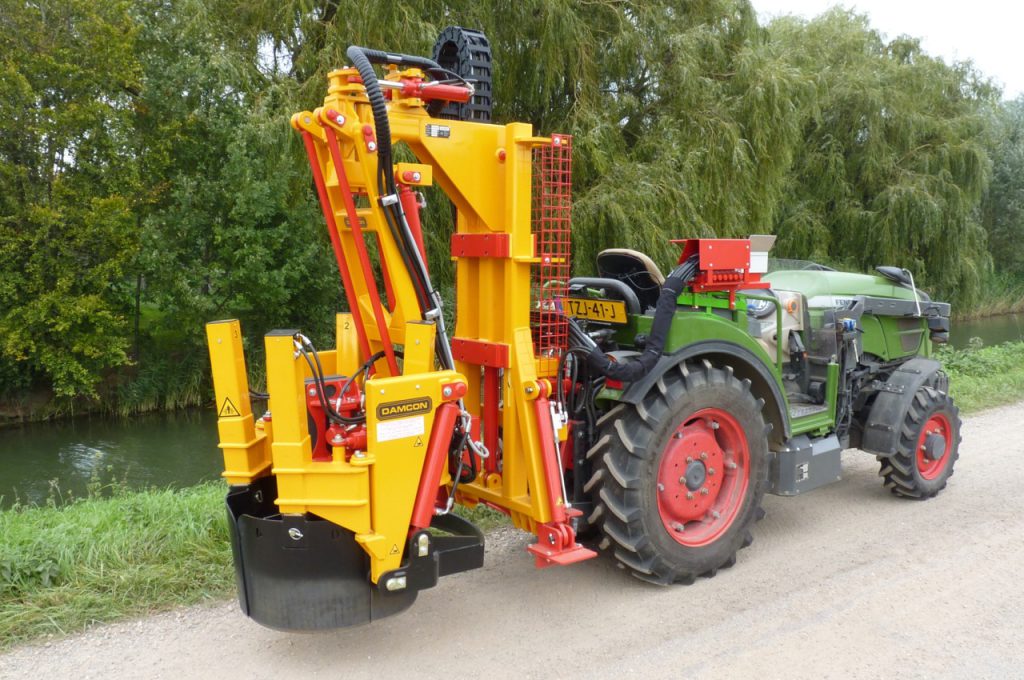

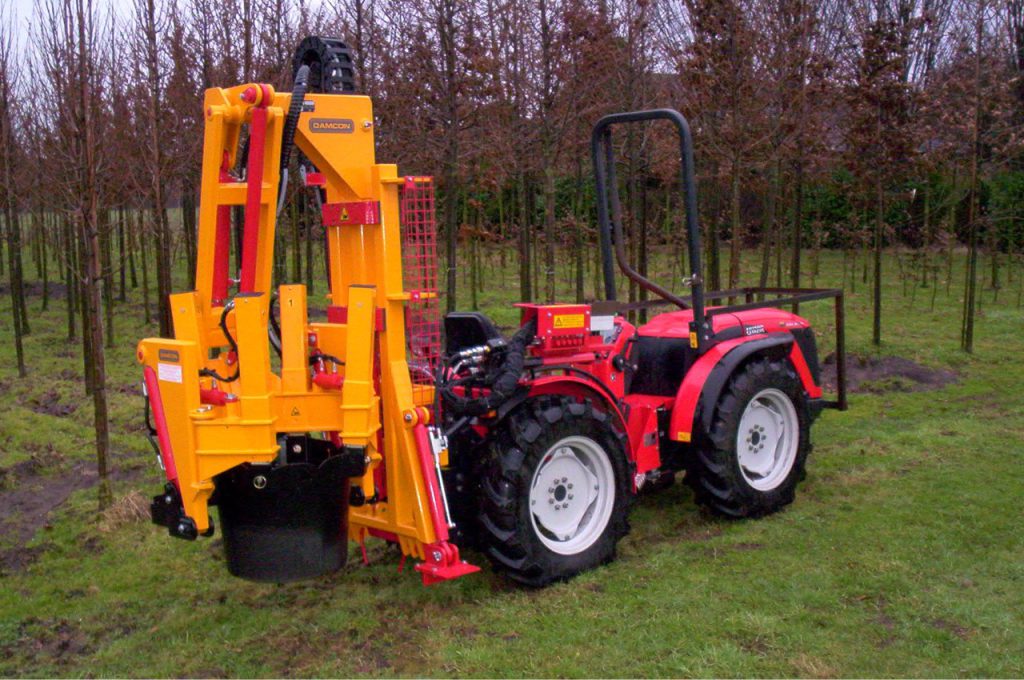

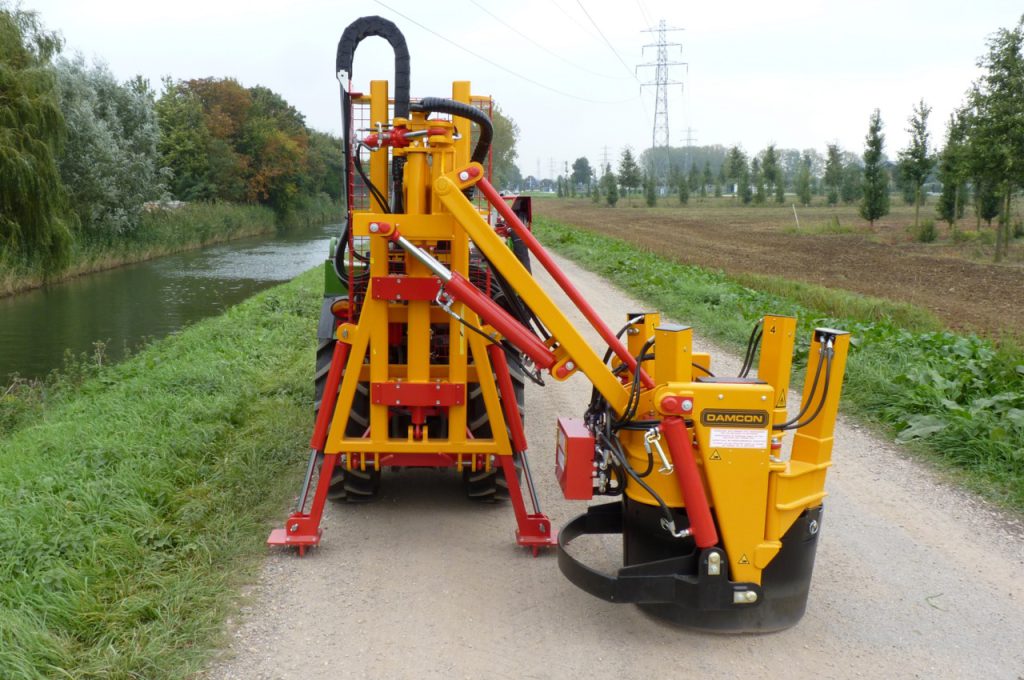

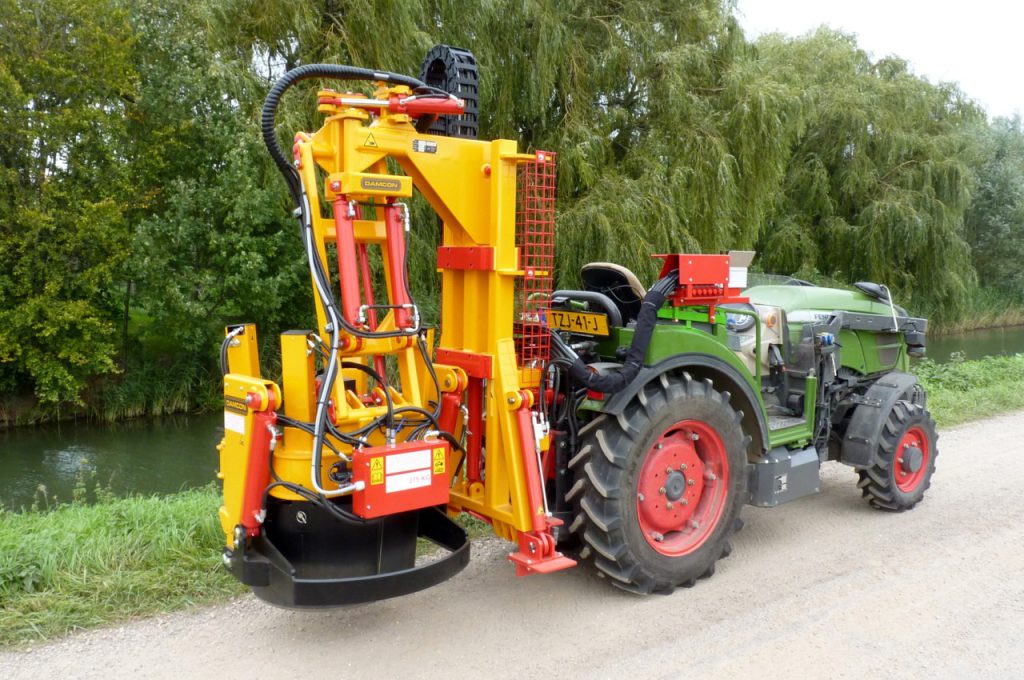

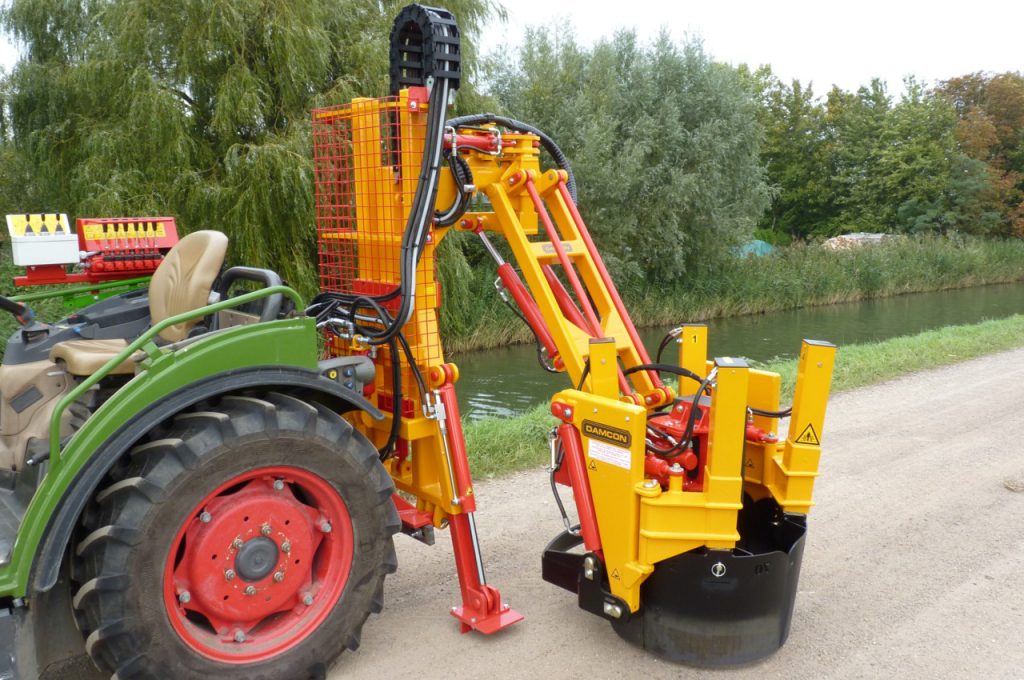

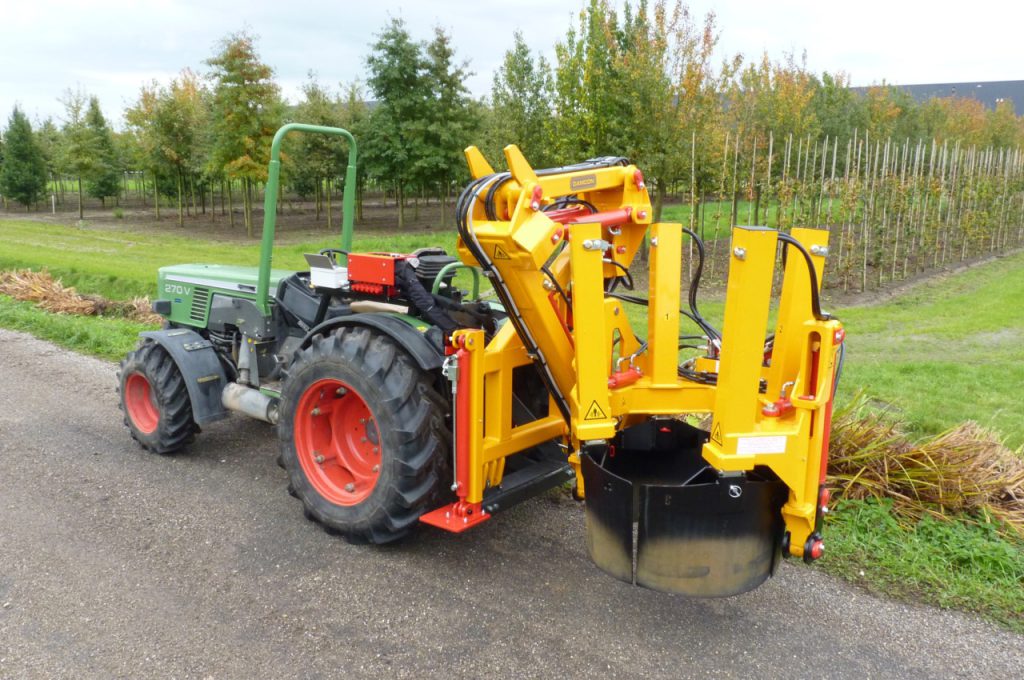

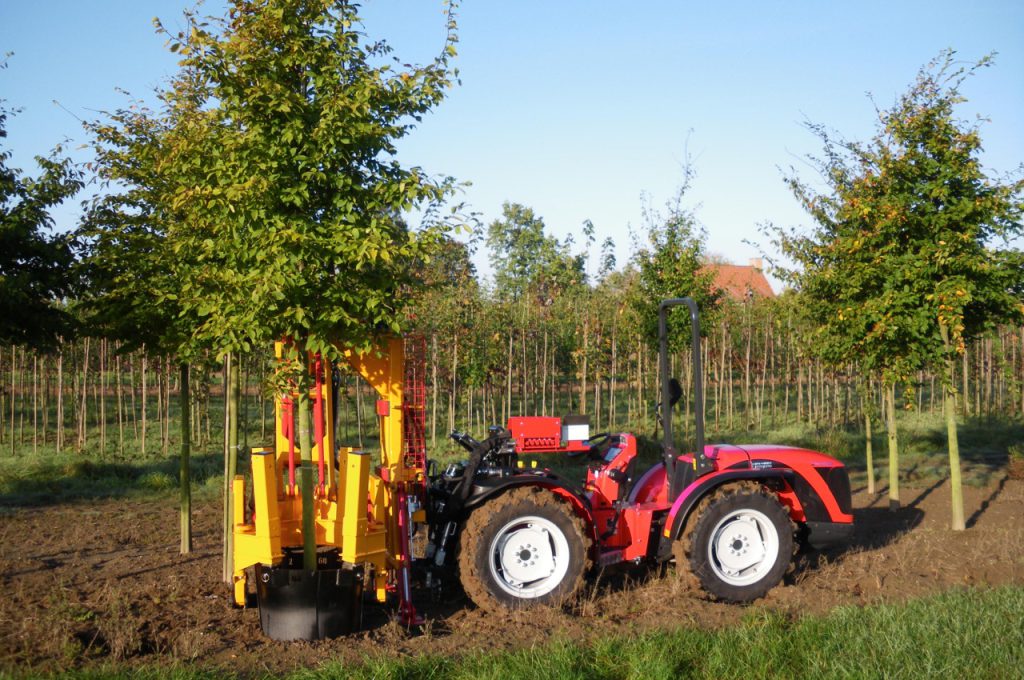

KLR 3-points mounted

The KLR three-point attachment series ranges from KLR-500 to KLR-800.
The rootball sizes range from 30-50 cm (KLR-500) 40-70 cm (KLR-700) 40-80 cm (KLR-800).
The rootball size is the diameter measured at the top of the rootball.

There are 3 types of tree spades:
Type I: 4 spades with undercutting blade.

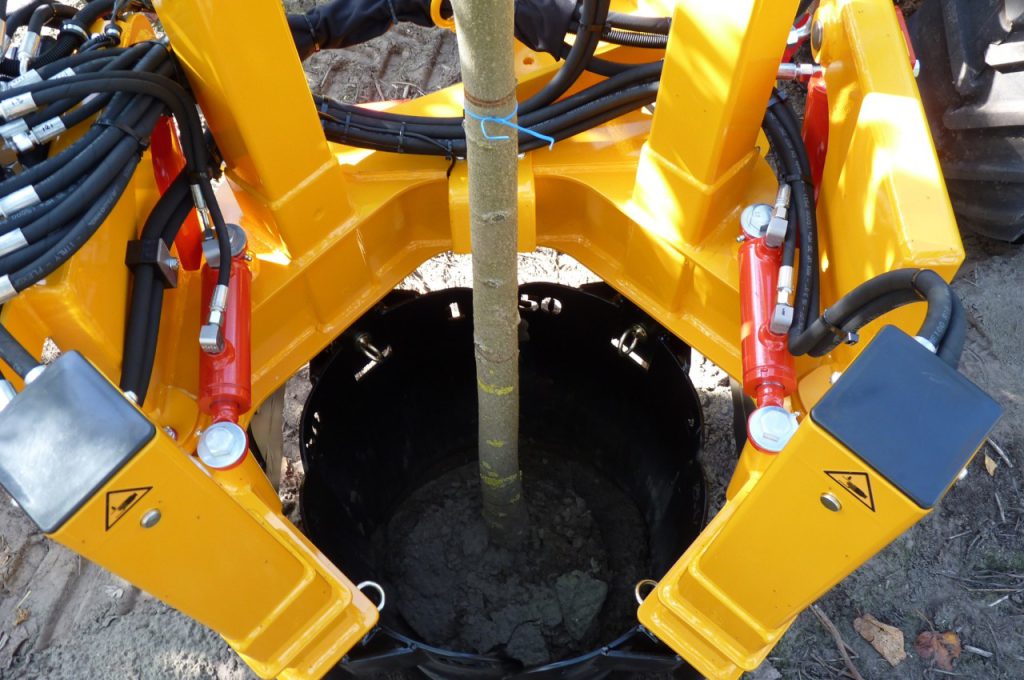

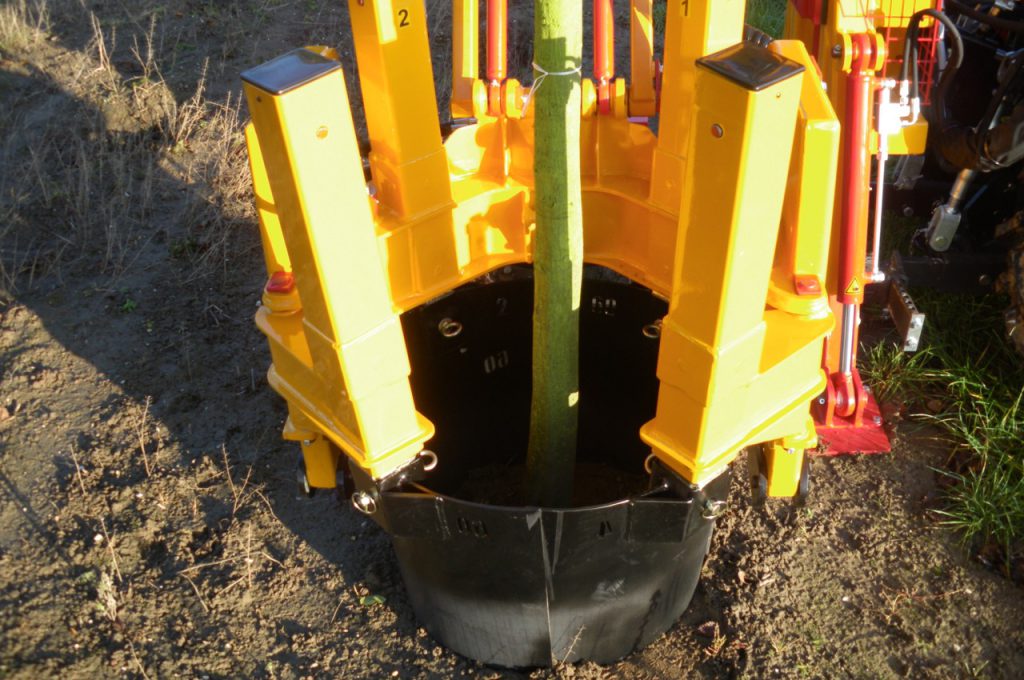

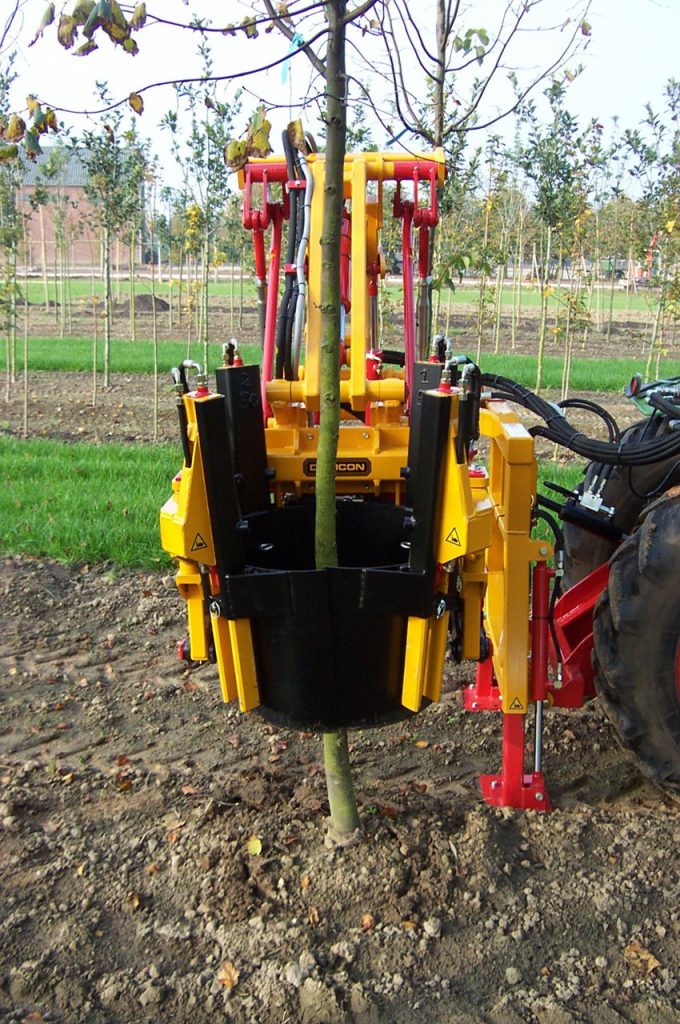

Operation: The spades go around the tree, close and go down. The undercutting blade cuts under the rootball, returns to the center of the rootball and the tree with rootball is lifted. This also works well for deep roots. The spades are adjustable.

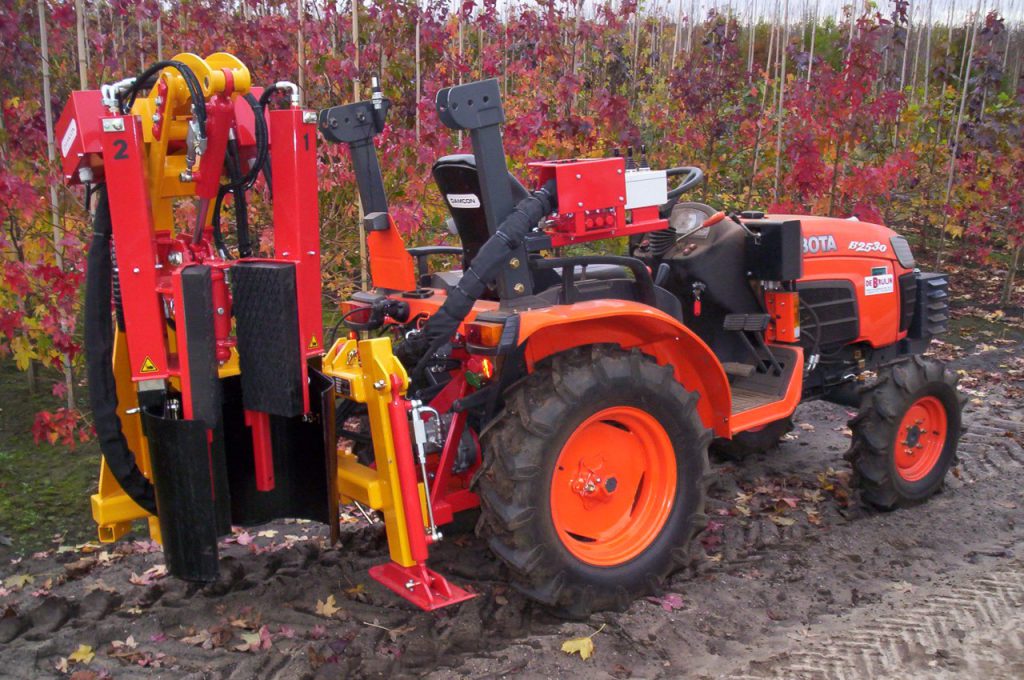

Type II: 2 spades with clamp, without undercutting blade.
peration: The spades go around the tree and the clamp clamps itself around the trunk. The spades go down and the tree with rootball is pulled out of the soil. This principle only works with shallow roots. The spades are adjustable.
Type III: Adjustable spades with undercutting blade
Operation: The spades go around the tree, close and go down. The undercutting blade cuts under the rootball, returns to the center of the rootball and the tree with rootball is lifted.
This system also works well for deep roots. The spades are adjustable.

Type I available in KLR-500 AB, KLR-650 AB, KLR-700 AB, KLR-700 HM, KLR-800 AB.
Type II available in KLR-501 AB.
Type III available in KLR-700 ST-V AB, KLR-800 ST-V AB.
